Intruder Alarms

DOMESTIC INTRUDER CLICK HERE

NEWS

BT Redcare gave notice to us on 31st January that they will be closing all their operations as of 1st August 2025, meaning all their signalling devices will stop working on this date.

Bt Redcare systems will require alternative signalling Call 0151 424 4141 for more information Existing customers will be automatically updated

www.redcare.bt.com

Intruder Alarm Maintenance & Monitoring

Our digitally controlled alarms offer full manageability of your system.

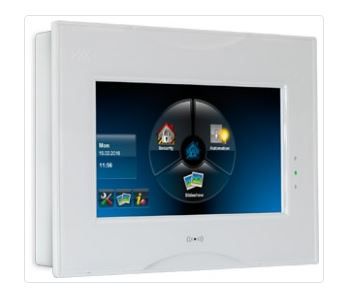

You can operate everything from your system keypad, which displays the time & date,provides you with text for each alarm zone i.e ‘Front Door’ will be displayed when that circuit is active.

All our intruder alarm systems are installed to the current British Standards,

All our engineers have to comply with Security screening to British standard BS 7858 this includes Police PNC (Police National Computer) report and work history checks on all our staff.

All of our systems our suitable for a small domestic installation through to an fully integrated commercial installation with graphical pc interfaces.

We also offer several options when it comes to having your alarm alert you of an activation whilst you are away from your property.

Smart phone app offers control & monitoring comparable to ADT & verisure systems

Intruder alarms Liverpool

Signalling – The Facts

Intruder Alarm Systems provide the optimum protection when used in conjunction with an Alarm Receiving Centre. In the event of an alarm condition the Intruder System will send a signal to the Alarm Receiving Centre who will then take appropriate action, eg. summon police, fire brigade etc.

There are several ways of transmitting the signal from the site to the Alarm Receiving Centre. The method of signalling will depend on the level of risk associated with the premises.

Selecting Appropriate Signalling Device…

Types of Signalling

The Hierarchy of signalling is as follows:

Digital Communicators

Digital Communicators offer a cost effective means of transmitting signals to an Alarm Receiving Centre. They connect to a standard telephone line (PSTN) and in the event of an alarm “phone up” the Alarm Receiving Centre and exchange code information. If the telephone line is cut the Alarm Receiving Centre is NOT notified and the system reverts to local indication only.

RedCARE

RedCARE is a polled device signalling over the PSTN. If the line is cut then both the Customer and the Central Station are informed.

RedCARE ISDN

RedCARE ISDN is a polled device signalling over the ISDN (Integrated Services Digital Network) Line. If the line is cut then both the Customer and the Central Station are informed.

DualCom

DualCom has two lines of signalling – PSTN and GPRS. If either line is cut or jammed then the other line keeps signalling. If both lines are cut/jammed then this is classed as a confirmed alarm which meets with DD243 requirements.

DualCom GSM

DualCom GSM has two lines of signalling – PSTN and GSM (Global System for Mobile Communications). As with Dualcom if either line is cut or jammed the other keeps signalling. If both lines are cut/jammed then this is classed as a confirmed alarm which meets with DD243 requirements.

RedCARE GSM

RedCARE GSM works in the same way as DualCom GSM just on a different GSM network. If using RedCARE GSM you must test the signal strength where the control panel will be located.

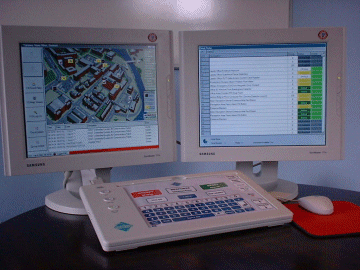

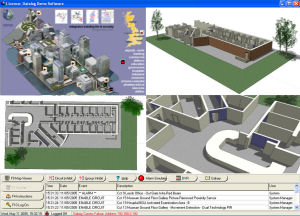

Integra Graphical Intruder Alarm Display

Designed to meet the challenges of today’s demanding environments, Integra’s security management suite provides the flexibility, scalability and control required for comprehensive security management.

task-user grapic intruder
